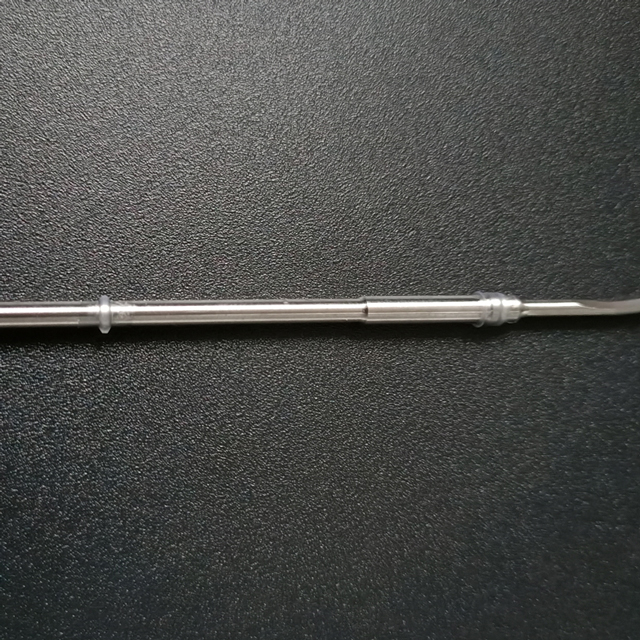

Real-world manufacturing often involves iterative improvements to achieve perfection. This case study chronicles the evolution of a mold for ultrasonic scalpel handles, demonstrating how meticulous engineering can dramatically improve yield rates.
An early version of a mold for a critical ultrasonic scalpel handle was achieving a respectable but unsatisfactory yield rate of 85%. While functional, the 15% scrap rate represented significant material waste and production inefficiency. A detailed root-cause analysis, involving cross-sectioning failed parts and reviewing process data, revealed several contributing factors: inconsistent venting leading to small burn marks, slight variations in cavity dimensions causing fit issues with downstream assembly, and a suboptimal ejection system causing occasional part marking.
The first iteration focused on venting. Micro-vents were redesigned and relocated based on flow analysis, virtually eliminating the burn marks. The second iteration addressed dimensional accuracy. Using feedback from Coordinate Measuring Machine (CMM) data on scrapped parts, the cavity dimensions were fine-tuned within tolerance to ensure a perfect fit with the mating component. Finally, the ejection system was upgraded. The original blade-type ejector pins were replaced with low-friction, polished pin configurations, and the ejection force profile was adjusted via programmable ejector controls.
After implementing these changes, the mold was put back into production. Continuous monitoring showed a dramatic improvement. Within a week, the yield rate climbed above 98%. After a month of stable production, the average yield stabilized at an impressive 99.9%. This case study exemplifies TYM's commitment to continuous improvement and engineering excellence, turning a good mold into a great one through data-driven refinement.
