Precision in medical device manufacturing extends to the micrometer level. Creating ultra-thin, uniform silicone coatings on surgical instruments is a testament to advanced mold design. This article explores the engineering behind achieving such tight tolerances.
The ergonomic handles of modern surgical instruments often feature overmolded silicone grips. In minimally invasive surgery tools, where space is at a premium, these grips must be incredibly thin—sometimes as little as 0.1mm—while still providing the necessary tactile feedback and grip security. Achieving such a uniform, defect-free layer across complex 3D geometries is an extraordinary feat of mold engineering.

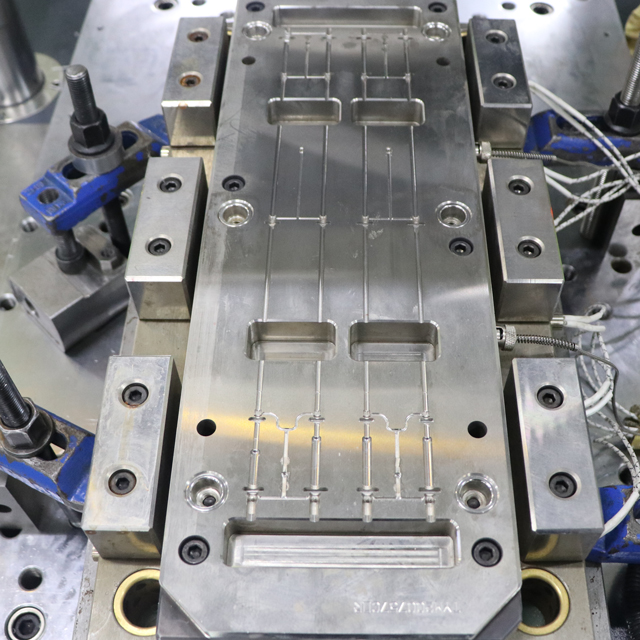

The primary challenge is controlling the flow and distribution of low-viscosity LSR within an extremely narrow cavity gap. Any imbalance in pressure or temperature can lead to uneven thickness, voids, or flash. TYM's approach begins with precision-machined mold components, utilizing high-hardness tool steels ground to tolerances of +/- 0.005mm. The cavity itself is created using state-of-the-art EDM or high-speed milling to achieve the exact 0.1mm depth with flawless surface finish.
To manage the flow, we design specialized gating systems, often employing needle valves or film gates, that introduce the LSR gently and uniformly. The mold incorporates advanced sensors for real-time monitoring of cavity pressure, ensuring the process remains within defined limits. Finally, a meticulously planned venting scheme, including vacuum assist if necessary, removes all air from the cavity before the LSR solidifies. This combination of ultra-precise tooling and intelligent process control makes the seemingly impossible reliably achievable.
