Optimizing cold runner systems for complex Liquid Silicone Rubber (LSR) molds is essential for achieving efficient, high-quality production. Unlike hot runner systems, cold runners solidify with the part and are removed afterward. For LSR, which has a relatively low viscosity and fast cure time, designing an effective cold runner system requires balancing flow dynamics with material waste minimization. The goal is to ensure uniform filling of all cavities simultaneously while keeping runner volume as small as practical to reduce scrap and cycle time impact.

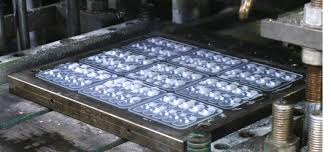

Runner layout and sizing are fundamental aspects of cold runner optimization. Balanced flow paths ensure each cavity fills at the same rate, preventing short shots in distant cavities or overpacking in closer ones. This often involves using a "natural" or "artificial" balancing method. Artificial balancing adjusts runner lengths and diameters to compensate for flow differences. Given LSR's shear-thinning behavior, diameter changes must account for how viscosity drops under high shear during injection, influencing pressure distribution across multiple cavities.
Gate design significantly affects both part quality and runner efficiency in LSR cold runner systems. Edge gates are common but may leave visible marks on cosmetic surfaces. Tunnel or submarine gates offer automatic deflashing but require precise timing to cut cleanly without distorting the part. Gate size must be optimized to allow rapid filling without causing jetting, which can lead to air entrapment or weld lines. Proper degassing near gates is crucial to vent air displaced by the fast-flowing LSR, preventing voids or burns in critical areas.
Material handling within the cold runner system also demands consideration. Since LSR cures quickly, minimizing residence time in the runner is vital to prevent premature gelation that could block flow or degrade material properties. Sharp corners or sudden reductions in runner diameter should be avoided to maintain laminar flow and reduce pressure losses. Simulation software can model flow front progression and identify potential problem areas before physical tooling construction, saving time and cost in developing robust cold runner designs for complex multi-cavity LSR molds.
