Mass-producing items like silicone toothbrushes with hundreds of individual bristles requires exceptional mold design. Balancing uniform filling and reliable ejection across so many cavities is a significant engineering challenge. This article reveals the secrets of successful high-cavity mold design.

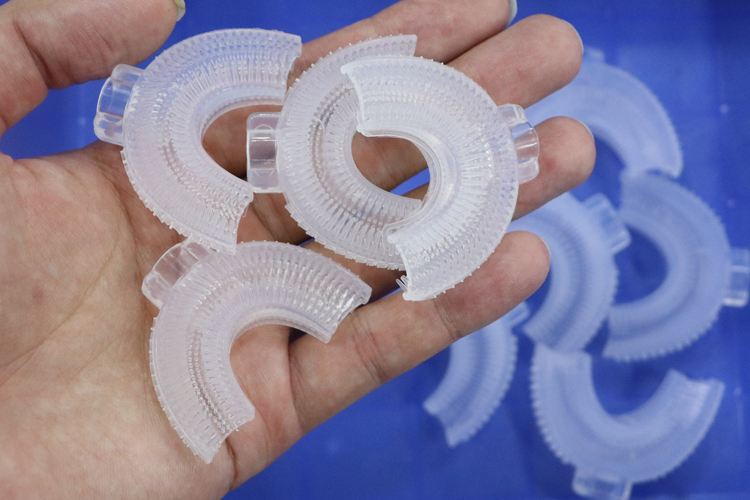

A single silicone toothbrush head can feature hundreds of individual, delicate bristles. Manufacturing these at scale demands a high-cavity mold, potentially with 32, 64, or even more cavities. The engineering challenge is immense: ensuring that each of the hundreds of tiny bristle cavities fills completely and uniformly with LSR, and then that each of the fragile finished bristles is ejected cleanly without damage or deformation.
Achieving uniform filling starts with a meticulously balanced runner system. TYM employs advanced Mold Flow Analysis (MFA) to simulate the LSR flow, optimizing the size and layout of runners and gates to ensure equal pressure and velocity at every cavity. This often involves a combination of sub-runners and individual pinpoint gates for each bristle.
Ejection is perhaps even more critical. Standard ejector pins would crush the tiny bristles. Instead, we design specialized plate ejection systems or use air-blow techniques. In some cases, a secondary, gentle mechanical stripper plate is employed, operating at a much slower speed and lower force than the main ejector system. The mold steel itself is chosen and treated for maximum wear resistance, as the constant ejection of abrasive-filled LSR can rapidly degrade standard surfaces. The culmination of these efforts is a mold that can produce thousands of perfect toothbrush heads per hour.
