A comfortable and effective nasal mask must conform perfectly to the user's face. The mold design is crucial for replicating these complex ergonomic shapes and sealing features. This article explores how molds achieve this precision.

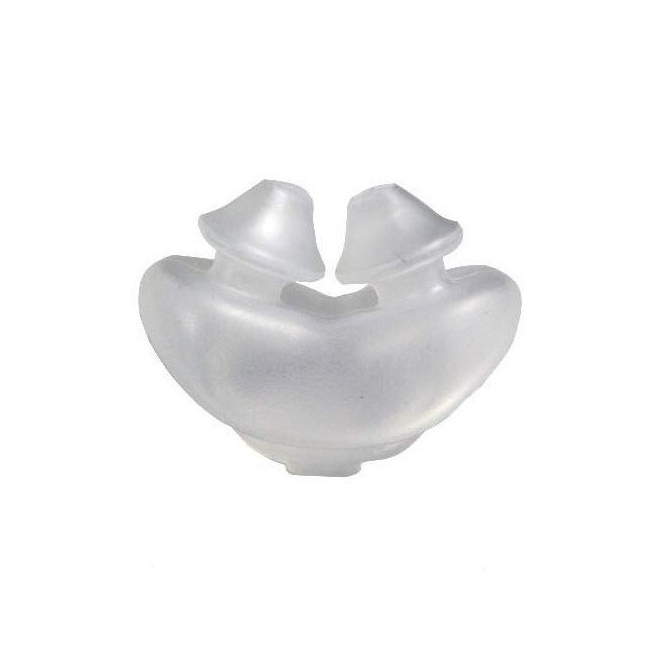

The success of a nasal mask hinges on its cushion's ability to form a leak-proof seal against a wide variety of facial structures. This requires the cushion to have complex, non-symmetrical curves and precise sealing features. Translating this intricate geometry into a functional mold is a significant engineering feat.
TYM mold designers begin with highly detailed 3D scans or CAD models of the target facial profile. The mold cavity is then meticulously designed using advanced CAD/CAM software to replicate these complex curves. High-speed milling and EDM are often used in conjunction to create the smooth, accurate surfaces needed. Special attention is paid to the sealing ribs—the raised edges that make contact with the skin. These ribs must have a specific profile and durometer to ensure an effective seal without causing discomfort.
The mold design also incorporates strategic venting. Because the cushion has a large surface area and complex geometry, air must be allowed to escape uniformly during filling. Improper venting can lead to voids or incomplete filling, especially in the sealing areas. Our engineers use flow simulation software to determine the optimal vent locations and sizes, ensuring complete and defect-free molding of these ergonomically critical components.
