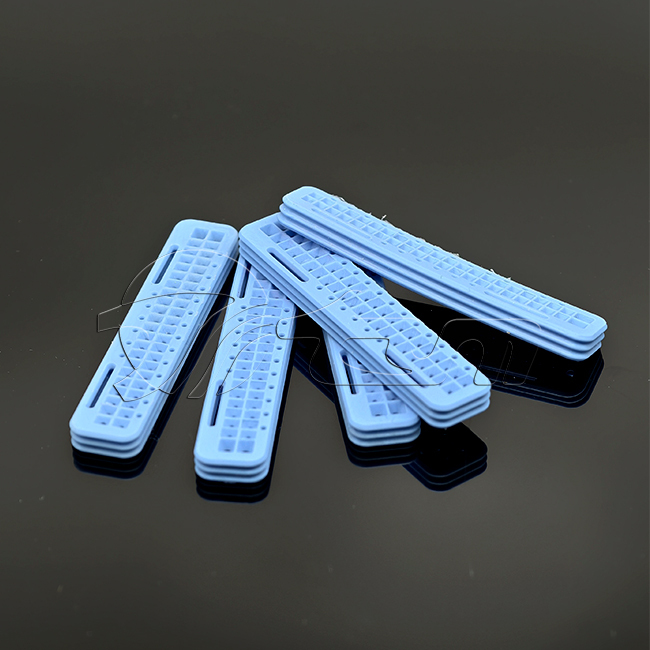

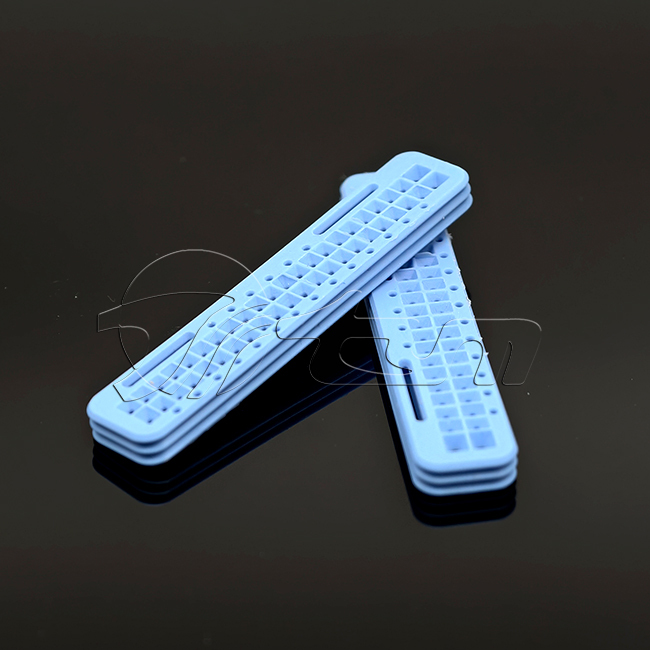

Multi-hole wire seals are critical components in automotive wiring harness systems, providing waterproof, dustproof, and vibration-resistant protection for electrical connectors. LSR is widely used in automotive sealing applications due to its excellent temperature resistance, elasticity, and chemical stability, ensuring reliable performance under harsh conditions.

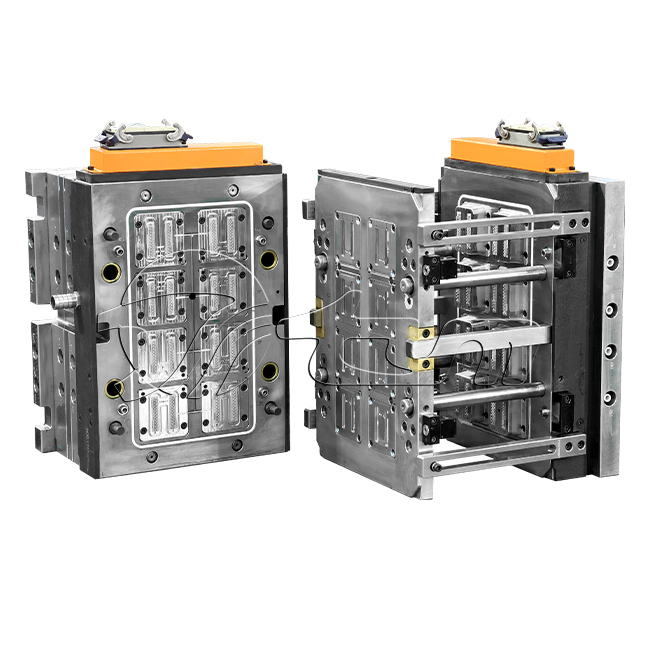

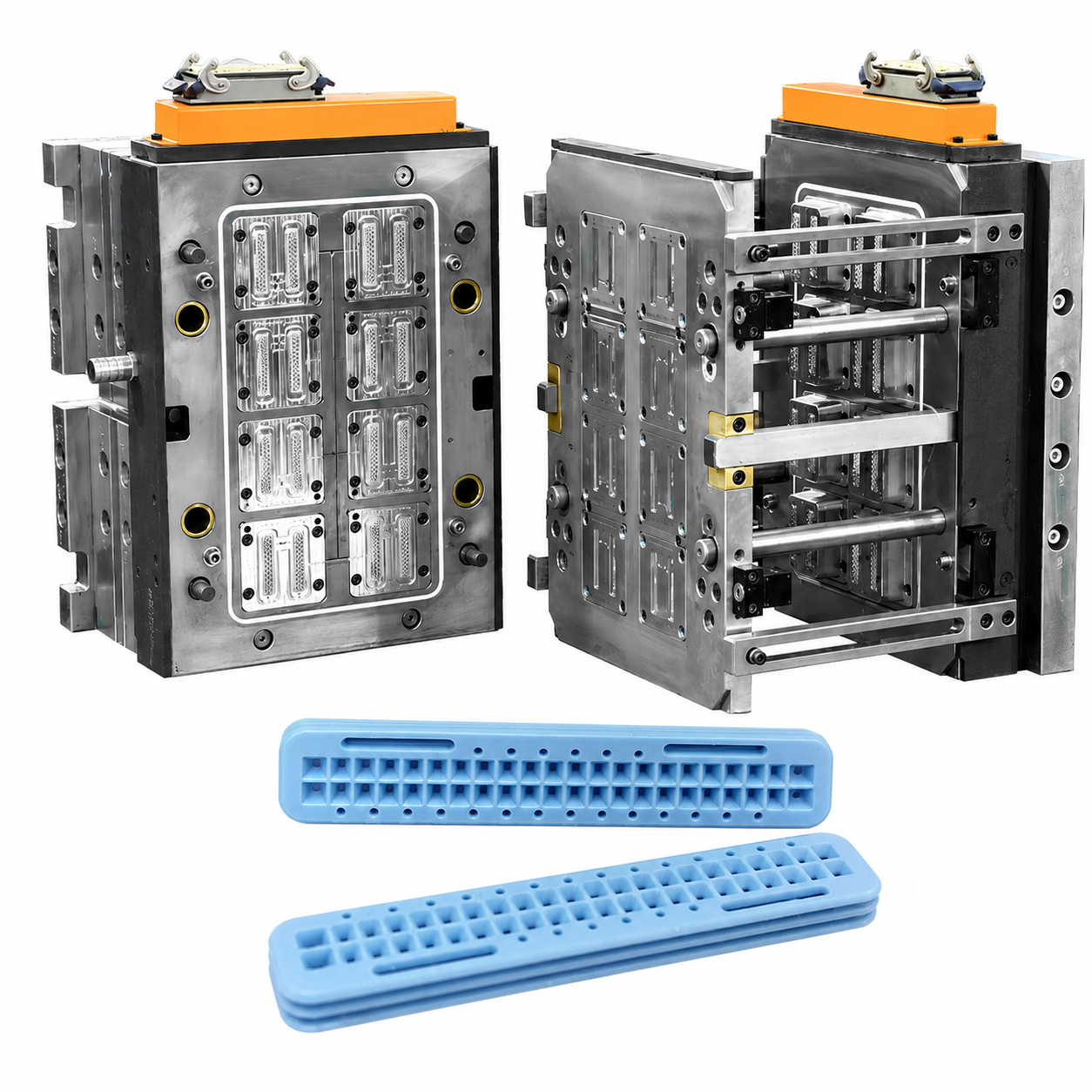

This injection mold for multi-port wire seal is engineered to process high-quality liquid silicone rubber, enabling precise sealing geometry and consistent product performance. Compared with traditional rubber molding, the silicone injection mold for automotive parts offers higher production efficiency, reduced flash, and improved part consistency. The 16-cavity cold runner design combined with 8 cold nozzles minimizes silicone waste while maintaining uniform material distribution. This precision mold for automotive connector seals is suitable for high-volume manufacturing of wiring harness components used in modern vehicles. In addition, the multi-cavity silicone seal mold can be customized to meet different connector configurations and sealing requirements.
Mold Information
| Mold Core Material | S136H |
| Mold Base Material | P20 |
| Number of Cavities | 16 |
| Runner Type | Conventional Runner |
| Number of cold nozzle | 8 |
| Product Name | LSR Multi-Port Wire Seal Connector |
| Machine Used | TYM-W5050 |
Ensures stable LSR injection and consistent product quality while reducing material waste for the silicone injection mold for automotive parts.
Each nozzle serves two cavities, optimizing mold cost and improving production efficiency.
Guarantees accurate sealing structure and reliable performance for the injection mold for multi-port wire seal.
High-quality steel and mirror polishing ensure long service life and stable operation for the LSR automotive connector seal mold.
Q1: What are the advantages of this injection mold for multi-port wire seal?
A:It provides high productivity, low material waste, and optimized mold cost with a 16-cavity cold runner system.
Q2: Why choose a silicone injection mold for automotive parts for wire seals?
A:LSR offers excellent sealing performance, temperature resistance, and long-term durability required in automotive environments.
Q3: Can this mold support customized connector designs?
A:Yes. The multi-cavity silicone seal mold can be tailored to different wire counts, sizes, and sealing structures.
