150T Vertical LSR injection molding machine TYM-L7078 Specifications
| Injection Unit |  |
|
| Barrel Size | 160g (customized) | |
| Plunger diameter | 30mm (customized) | |
| Injection rate | 100g/s | |
| Injection pressure | 700kg/cm2 | |
| Clamping Unit | ||
| Clamping force | 150T | |
| Opening stroke | 600-900m | |
| Tie-Bars space | 700*780mm | |
| Ejection force | 4T | |
| Ejection stroke | 150mm | |
| Others | ||
| Motor power | 12kw | |
| Voltage & current | 380V, 50HZ | |
| Pump Pressure | 20mpa | |
| Time schedule controller (TCON) | 8 sets（expandable） | |
| Machine Weight | 7.5T | |
| Machine dimension | 3.2*1.9*3.8m |

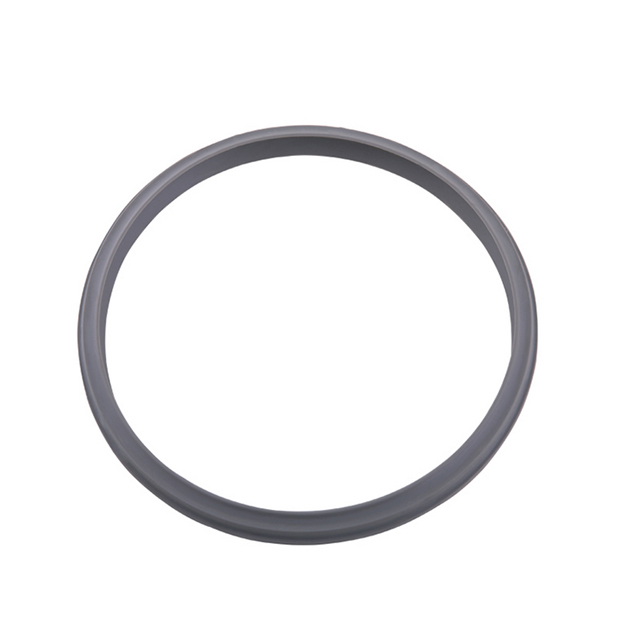

LSR Mold for pressure cooker silicone ring
|
Mold details |
|
|
Mold base material |
P20 (customizable) |
|
Mold core/insert material |
S136 /SKD11(customizable) |
|
Cavity |
4 cavities (customizable) |
|
Runner |
cold runner |
|
Nozzle |
8 pcs needle valve injection nozzle |
|
Demolding |
Manipulator clamp |
For the pressure cooker silicone ring, silicone Kitchen ware products cake silicone mold, chocolate silicone mold, Lid seal, cap valve, cooking spatula, shower head, basket which can be made by LSR injection machine TYM-L7078, TYM provide the LSR injection machine and silicone mold for the silicone parts production line.
Q:What is the machine model for pressure cooker silicone ring?
A:TYM-L7078 Vertical Machine.
Q:What is the mold runner of this product?
A:Cold runner system.
Q: What’s your term of the delivery?
A: Our ordinary delivery term is EXW Guangzhou. We also accept FOB, CFR, CIF, DDP, etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
