Silicone Medical Valves Mold

TYM specializes in providing complete solutions for producing Medical Silicone Valves Mold through advanced LSR injection molding. These valves, typically composed of high-grade silicone and PP plastic components, are designed with rotatable or slidable cores that allow for multi-channel fluid direction control.The valve core structure enables healthcare professionals to seamlessly regulate fluid flow between different pathways. During the design phase.Key aspects sterility, biocompatibility, ease of use, and resistance to chemical corrosion are carefully considered to ensure safety and functionality in real-world medical applications.To manufacture these multi-component flow valves, the production line typically involves two main processes: for the Medical Silicone Valves Mold and conventional plastic injection molding for the PP parts. TYM supplies both precision LSR molding machines and customized tooling to support high-volume production.LSR has become an essential material in the production of medical components, owing to its superior safety, purity, and adaptability. Among various applications, Medical Silicone Valves Mold making medical valves are widely used in clinical fluid control systems where hygiene, precision, and reliability are critical.

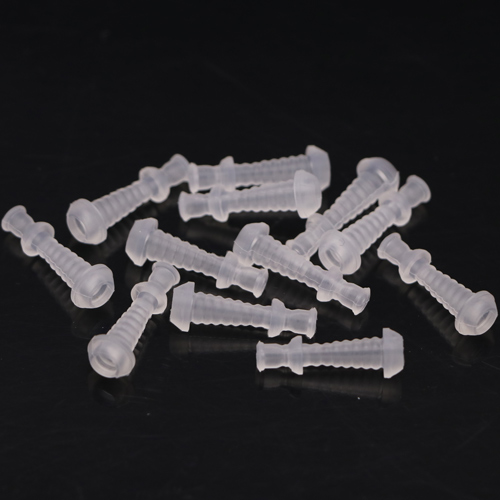

LSR Mold for medical silicone valve

Mold details
Mold base material	P20 (customizable)
Mold core/insert material	S136 (customizable)
Cavity	64 cavities (customizable)
Runner	Cold Runner
Nozzle	4 pcs needle valve injection nozzle
Demolding	Automatic

130T Horizontal LSR injection molding machine TYM-W5050 Specifications

Clamping Unit
Clamping force	130T
Opening stroke	200-700m
Tie-Bars space	500*500mm
Ejection force	4T
Ejection stroke	150mm
Others
Motor power	12kw
Voltage & current	380V,50hz
Pump Pressure	20mpa
Time schedule controller (TCON)	8 sets
Machine Weight	5.8T
Machine dimension	4.31.42.0m

FAQ

Q1: What makes your silicone valve suitable for use in medical environments?
A: Our silicone valves are made using FDA-compliant LSR, ensuring excellent biocompatibility, elasticity, and sealing performance. They are designed for contact with pharmaceutical fluids and can withstand common sterilization methods such as autoclaving or EO treatment. Each unit is produced under ISO-certified processes to ensure medical-grade quality.

Q2: Can I customize the valve design, including channel structure or connection type?
A: Yes, TYM offers complete OEM/ODM services. We can adjust the number of flow channels, design valve core geometries, or integrate custom fittings based on your system requirements.

Q3: What level of automation is possible for valve production?
A: The LSR valve production line can be semi-automated or fully automated depending on your scale.
