Details

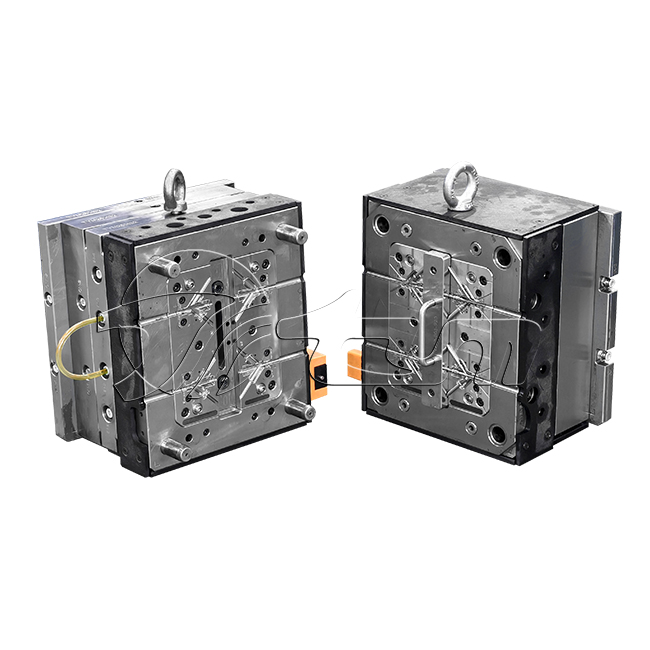

The 3-way silicone connector injection mold for gastric tube is designed for medical-grade production using advanced LSR injection mold for medical tubing technology. This three-cavity mold ensures high dimensional accuracy, excellent sealing performance, and efficient output. It features a cold runner system that minimizes material waste and guarantees clean, burr-free products.
The mold is suitable for vertical LSR injection molding machines, offering stable clamping and precise injection. A double lower-mold configuration can be applied to improve productivity, allowing one lower mold to inject while the other demolds. Each mold is built with hardened tool steel and a mirror-polished surface, ensuring long service life and stable performance in continuous operation.
Mold information
| Mold core material | S136 |  |
| Mold base mateerial | P20 | |
| Number of cavity | 4 | |
| Runner system | Cold Runner | |
| Number of cold nozzle | 4 | |
| Product name | 3-way silicone connector | |
| Machine used | TYM-L5058 |
The 3-way silicone connector injection mold for gastric tube is commonly used in the production of enteral feeding and drainage devices. Silicone tubing and connectors made from LSR injection mold for medical tubing have excellent transparency, flexibility, and biocompatibility, making them ideal for clinical use. Compared to PVC or rubber products, silicone parts are more durable, non-toxic, and resistant to repeated sterilization. TYM provides a complete solution for LSR molding, from mold design to machine configuration, ensuring high efficiency and consistent product quality for the medical industry.
Cold Runner System – Maintains LSR at controlled temperature before injection, reducing waste and ensuring clean gating for medical parts.
Vertical Molding Machine Compatibility – Provides stable clamping force and precise injection, ideal for long or multi-connector silicone tubing.
Double Lower-Mold Design – Enables alternate molding and demolding operations, boosting productivity by up to 40%.
Precision Engineering – High-accuracy CNC and EDM processes ensure tight tolerance and smooth lumen for medical silicone tubing.
Uniform Thermal Control – Even temperature distribution guarantees consistent curing and prevents deformation during molding.
Q1: What are the advantages of this LSR injection mold for medical tubing?
It uses a cold runner system, vertical machine setup, and optional double lower molds for higher efficiency and reduced waste.
Q2: Can the 3-way silicone connector injection mold for gastric tube be customized?
Yes. TYM offers design customization for tube length, connector type, and cavity number to meet various clinical applications.
Q3: What is the mold’s expected lifespan?
With proper maintenance, each LSR injection mold for medical tubing can exceed one million cycles while maintaining high precision and consistent performance.
