Multi-cavity mold design is widely used in injection molding to improve production efficiency and reduce unit cost. By producing multiple identical parts in a single cycle, manufacturers can significantly increase output and achieve economies of scale.
However, the complexity of multi-cavity mold design is often underestimated.Multi-cavity mold design is not about duplicating cavities—it is about achieving consistent performance across all cavities under real production conditions.In practice, even minor variations in material flow, temperature distribution, or structural precision can lead to defects, unstable quality, and increased production risk.
A multi-cavity mold is a mold system that contains multiple identical cavities, allowing several parts to be produced simultaneously in one injection cycle. It is commonly used in industries requiring high-volume production, such as automotive, medical, and consumer products.
While this approach improves efficiency and reduces per-unit cost, it introduces a series of engineering challenges that do not exist in single-cavity molds.
One of the most critical challenges is achieving flow balance within the runner system. Although geometrically symmetrical runner layouts are designed to ensure equal filling, real-world studies show that symmetry does not guarantee balance.
The root cause lies in shear-induced temperature and viscosity variations. As molten material flows through the runner, different shear rates create uneven heating, leading to localized viscosity changes. This causes some cavities to fill faster than others, resulting in defects such as short shots, overpacking, and weight variation.
Research has confirmed that flow imbalance is a persistent and complex issue in multi-cavity molds, influenced by material properties, runner design, and process conditions.
In addition to flow imbalance, uneven cooling across cavities is another major challenge. Cavities located near the center of the mold tend to retain more heat, while those near the edges cool faster.
This temperature difference leads to uneven shrinkage and internal stress, which often results in warpage, dimensional variation, and inconsistent product performance. Thermal imbalance is particularly problematic in high-precision applications where tight tolerances are required.
As the number of cavities increases, the mold structure becomes significantly more complex. A multi-cavity mold must integrate multiple systems, including runners, cooling channels, ejection mechanisms, and venting structures.
These systems interact with each other, and small design errors can propagate across all cavities. Compared to single-cavity molds, this increased complexity leads to longer development cycles, higher design risks, and greater difficulty in making post-production modifications.
Maintaining consistency between cavities is one of the most demanding aspects of multi-cavity mold design. All cavities must produce identical parts within tight tolerances, often at the micron level.
Even minor differences in geometry, gate design, or cooling efficiency can result in measurable variations in part size, weight, and surface quality. In many industries, such inconsistencies can lead to assembly failures or product rejection.
Multi-cavity molds introduce more parting surfaces, increasing the risk of sealing issues. When pressure distribution is uneven, some cavities may become overpacked, leading to flash defects.
This problem is especially critical in liquid silicone rubber (LSR) molding, where the material’s high flowability requires extremely precise sealing and clamping force control.
In multi-cavity production, multiple parts are produced simultaneously, which complicates quality control. When defects occur, it is often difficult to identify which cavity is responsible.
A single defective cavity can compromise an entire production batch, increasing scrap rates and inspection costs. Effective quality control therefore requires advanced monitoring and traceability systems.
As cavity numbers increase, so does the number of wear components such as inserts, ejector pins, and cooling channels. This leads to more complex maintenance requirements and longer downtime during repairs.
In many cases, failure in a single cavity can halt production for the entire mold, significantly affecting overall productivity.
Multi-cavity molds require a significantly higher upfront investment due to their complexity, precision requirements, and material usage.
Although they reduce per-unit cost in high-volume production, the initial investment introduces financial risk. Therefore, the decision to use a multi-cavity mold must be based on a careful evaluation of production volume, product lifecycle, and return on investment.

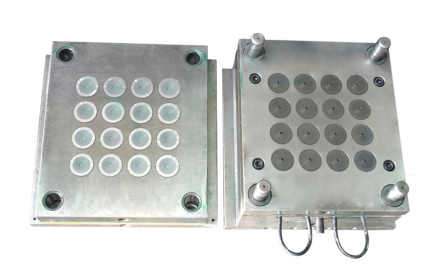

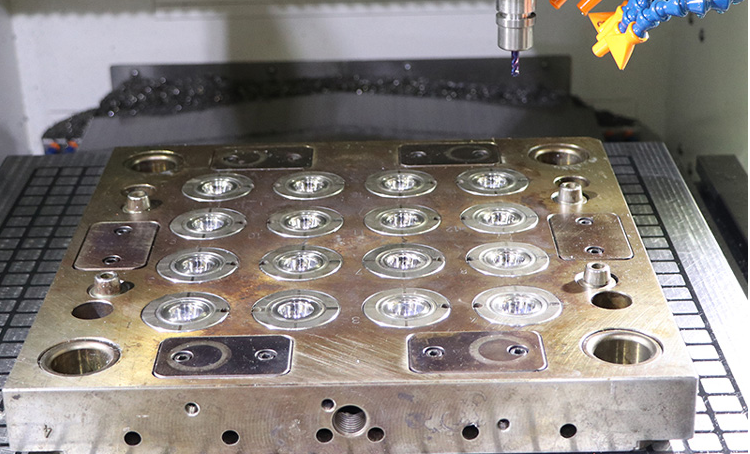

In a 16-cavity liquid silicone rubber (LSR) baby nipple mold project, high consistency across all cavities was critical due to strict product standards.
During initial trials, despite a symmetrical runner design, filling imbalance occurred. Some cavities filled faster while others showed slight underfilling. Analysis revealed that the issue was caused by shear-induced viscosity differences in the highly fluid LSR material rather than geometric imbalance.
To solve this, Moldflow simulation was applied to optimize runner and gate design, creating an artificially balanced system. At the same time, the thermal control system was improved to ensure uniform curing across all cavities, reducing dimensional variation.
Because LSR is highly sensitive to sealing, precision machining and optimized clamping were also implemented to eliminate flash defects. In addition, a modular design allowed individual cavity maintenance without stopping the entire mold.
After optimization, the mold achieved stable production with consistent quality across all 16 cavities and significantly improved yield.
A:The biggest challenge is flow imbalance, as it directly affects filling consistency, product quality, and overall process stability. Even symmetrical designs can experience imbalance due to shear-induced temperature differences.
A:Flow imbalance occurs because of differences in shear rate, temperature, and viscosity within the melt. These factors create uneven flow behavior, even when the runner system is geometrically balanced.
A:No. Multi-cavity molds are only suitable for high-volume production where the cost savings justify the higher initial investment and increased complexity.
A:Flow imbalance can be reduced through simulation analysis, optimized runner design, proper gate sizing, and controlled processing parameters such as injection speed and temperature.
A:Industries with high production demand and strict consistency requirements, such as automotive, medical devices, and consumer electronics, benefit the most from multi-cavity molds.
Multi-cavity mold design is not simply about increasing production capacity.It is about achieving balance, precision, and consistency across multiple cavities under complex processing conditions.
The main challenges—including flow imbalance, thermal variation, structural complexity, and cost considerations—are interconnected and must be addressed systematically.
A well-designed multi-cavity mold is not just a production tool; it is a critical factor in achieving stable quality, high efficiency, and long-term competitiveness.
